Excellent lasting Color ASA PVC Plastic Roof Tile/Synthetic Resin Roof Tile

Brand Name:	Hengcing
MOQ:	200 Square Meters (MOQ)
Price:	US$3.90 - 4.50
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Sound Insulation:

Good Sound Insulation Performance

Length:

1050mm

Thickness:

2.5mm-3.0mm

Size:

Customizable

Material:

ASA Synthetic Resin

Color:

Various Colors Available

Lightweight:

Easy To Install And Transport

Packaging Details:

in Bulk or by Pallet

Highlight:

5mm synthetic resin tile

2.5mm synthetic resin tile

5mm synthetic resin roof tile

Product Description

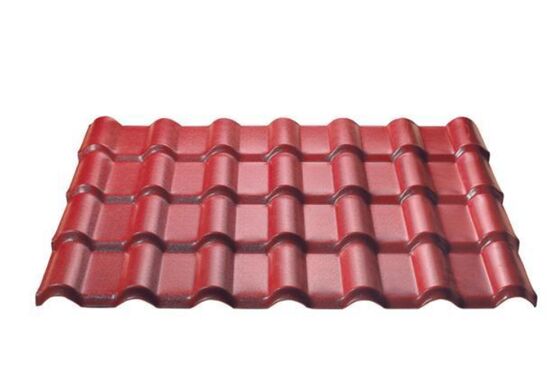

ASA synthetic resin tile products

Enhanced Strength - Steel-reinforced core for superior load capacity
Elegant Design - Classic styling with UV-resistant finishes
Material Efficiency - Reduces waste & increases purlin spacing
Advanced PVC Composite - Durable & weather-resistant
Weather Protection - Resists corrosion, UV & temperature extremes
Fire Safety - Meets building insulation standards
High-Temp Use - Suitable for industrial applications
Longevity - Lasts 2× longer than standard PVC roofing

Excellent lasting Color ASA PVC Plastic Roof Tile/Synthetic Resin Roof Tile 0

Product name	HENCING ASA synthetic resin tile
Product color	Brick Red, Purplish Red, Dark Green,Bule,Grey
Product Length	Customized as required
Product thickness	2.5mm/2.8mm/3.0mm
Product Width	1050mm
Effective Width	960mm
Wave Height	30mm
Wave Pitch	160mm

Excellent lasting Color ASA PVC Plastic Roof Tile/Synthetic Resin Roof Tile 1

Characteristic

✔ Color Stability - ASA resin surface maintains color (ΔE≤5 after 10 years outdoor exposure)
✔ Structural Strength - Withstands 150kg load (660mm span tested) without damage
✔ Chemical Resistance - Endures acid, alkali, salt, and organic solvents
✔ Self-Cleaning - Smooth ASA surface sheds dust with rainwater
✔ Fire Safety - Certified B1 fire rating (difficult to combust)
✔ Impact Resistance - Superior shock absorption against hail/falling objects
✔ Noise Reduction - Effective sound insulation for rain/wind noise
✔ Waterproof Design - 45% wider than traditional tiles with minimal joints
✔ Electrical Insulation - Non-conductive for storm safety

Install

Hengxing resin tile installation requirements:

Truss Preparation
- Ensure the roof truss structure is properly leveled and reinforced to support the tile weight.
Purlin Spacing
- Maximum purlin width: 660mm (critical for load distribution and tile stability).
- Use treated timber or galvanized steel purlins to prevent corrosion.
Roof Slope
- Minimum slope: 3/4 (≈37°) for proper water drainage.
- Avoid slopes <20° to prevent water pooling.

Accessory

Excellent lasting Color ASA PVC Plastic Roof Tile/Synthetic Resin Roof Tile 3
