| Brand Name: | Hengcing |
| MOQ: | 200 Square Meters (MOQ) |
| Price: | US$3.90 - 4.50 |
| Payment Terms: | T/T |

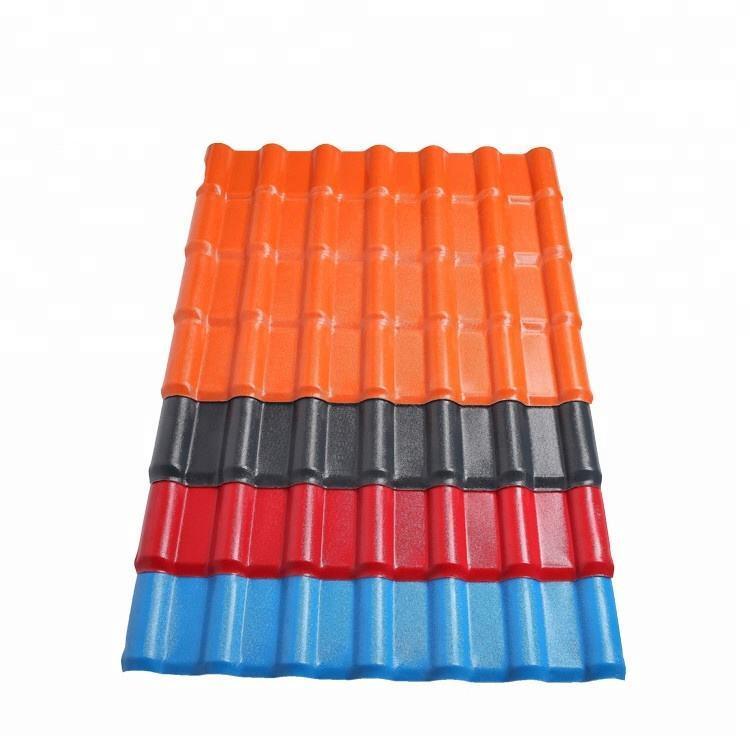

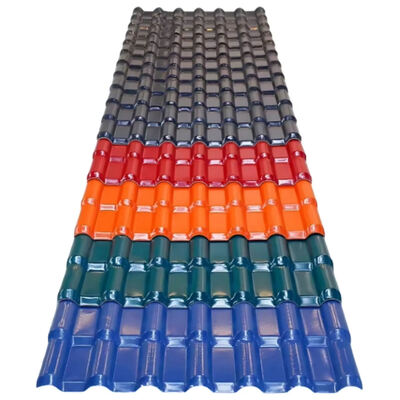

Thickened ASA Synthetic Resin Roof Tile for High Load Bearing Roof Structures
Where purlin spacing is wide or snow load is high, the 3.0 mm wall of this ASA tile provides extra stiffness without the weight of conventional tile.
| Product name | HENCING ASA synthetic resin tile |
| Product color | Brick Red, Purplish Red, Dark Green,Bule,Grey |
| Length | Customized |
| Product thickness | 2.5mm/2.8mm/3.0mm |
| Product hight | 30mm |
| Pitch distance | 160mm |
| Efficiency | 960mm |
| Profile | 1050mm |
Product Overview
Product Type: heavy duty ASA synthetic resin roof tile
Material: thickened resin section with ASA weathering skin
Surface: reinforced matte texture
Core: load bearing stiffness, snow load resistance, integral waterproofing
Projects: wide span sheds, snow regions, industrial roofs
Custom: thickness selection from 2.5 mm to 3.0 mm
Key Characteristics
1. Thicker Wall Section
The 3.0 mm variant raises section modulus, so deflection stays within limits across wider purlin spacing.
2. Snow Load Capacity
Ridges and ribs carry accumulated snow without permanent deformation.
3. Stable Fixing Points
Reinforced fastening zones resist pull-through when wind and snow load combine.
Key Features
1. Fewer Purlins Required
Higher stiffness can reduce secondary steel, offsetting material cost.
2. Foot Traffic Tolerance
Maintenance access on the roof is safer than on thin sheet.
3. Same Installation Method
Standard trims and fixings apply, so crews need no new training.

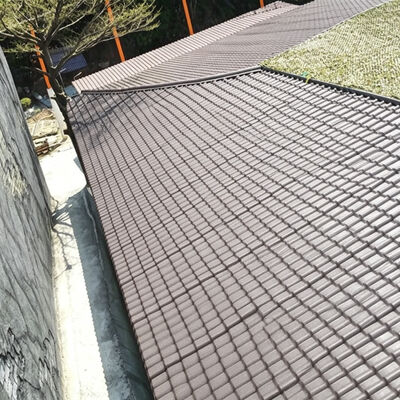

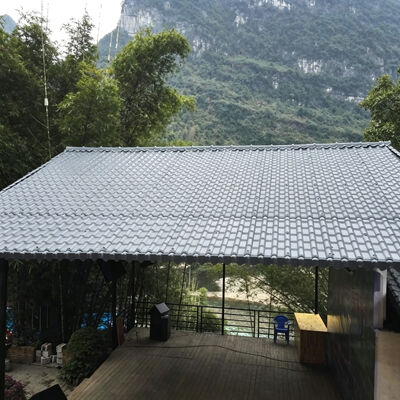

Applications
