| Brand Name: | Hengcing |
| MOQ: | 200 Square Meters (MOQ) |
| Price: | US$3.90 - 4.50 |
| Payment Terms: | T/T |

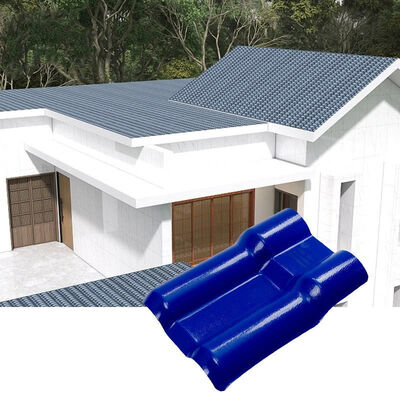

Solar Mounting Compatible ASA Synthetic Resin Roof Tile for Rooftop PV Installation
Roofs now carry photovoltaic arrays; this tile is detailed so mounting brackets land on structure rather than on a fragile surface.

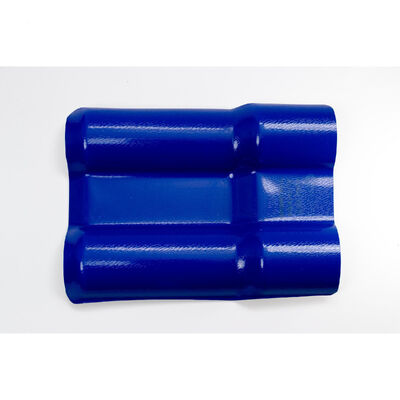

| Product name | HENCING ASA synthetic resin tile |

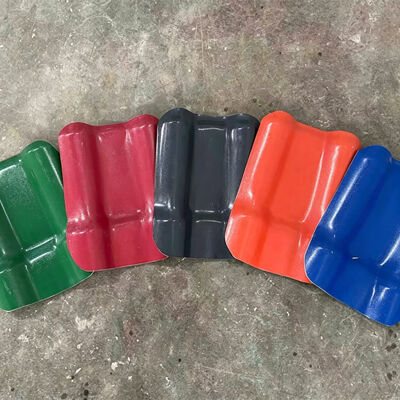

| Product color | Brick Red, Purplish Red, Dark Green,Bule,Grey |
| Length | Customized |
| Product thickness | 2.5mm/2.8mm/3.0mm |
| Product hight | 30mm |
| Pitch distance | 160mm |
| Efficiency | 960mm |
| Profile | 1050mm |
Product Overview
Product Type: PV ready ASA synthetic resin roof tile
Mounting: bracket compatible with standard rail systems
Load Path: brackets fixed through to purlin, not to sheet alone
Sealing: EPDM collar at each penetration point
Layout: tile spacing supports common module dimensions
Projects: rooftop PV, solar villages, net zero housing
Key Characteristics
1. Bracket Ready Detail
Hook brackets sit over the tile and fix to the purlin, so the roof structure carries the array load.
2. Sealed Penetration
Each fixing point uses an EPDM collar, keeping the roof watertight after installation.
3. Serviceable Array
Mounting hardware is adjusted without removing roof sheets.
Key Features
1. One Trade Interface
Roofer and PV installer work to the same fixing plan.
2. Lower Leak Risk
Penetrations are controlled and repeatable rather than drilled on site.
3. Roof Life Maintained
Array installation does not void the roof weather performance.
